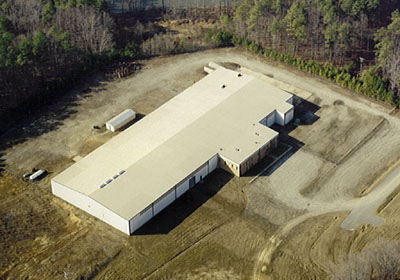

Available Industrial Property (VA000901)

1979 / 1994
1979 - Original (69,151 square feet)1994 - Addition (9,000 square feet)

Good

8,422 SF
8,422 square feet on two story offices and plant support areas divided as follows:First floor of 4,211 square feet consists of canteen area, plant restrooms, two storage rooms and two supervisory offices.Second floor of 4,211 square feet is air-conditioned and consists of 6 private offices, reception area, kitchen, conference room and 3 general clerical areas. Finish includes dry-wall portions, vinyl tile flooring, recessed fluorescent lighting and acoustical ceiling.

103.6 x 40.66; 460 x 150.25

Min: 24', Max: 31' 6"

Original: 24' eave height, 29' center heightAddition: 30' eave height, 31'7" center height1-1/2" exposed vinyl-backed insulation.

25' x 50'

8" circular steel

26 gauge corrugated pre-engineered metal panels with 1-1/2" vinyl-backed insulation.

6" - 6" reinforced concrete floors; 6 x 6 x 10/10 wwm.

26 gauge corrugated pre-engineered metal wall system with 2" vinyl-backed insulation; 8' high interior plywood liner panel. Translucent panels along the eaves of the east and west walls allows additional lighting. Office exterior features painted brick over insulated block with decorative soldier course.

400 watt mercury vapor fixtures (GE C-650N-703).

North Wall:1-14' x 16' manual overhead drive-in doorEast Wall: 5-8' x 10' manual overhead truck high loading doors w/bumper pads, dock seals, trailer locks & manual load levelers1-12' x 16' manual rollup truck high loading door. Cutout in place to add load levelerWest Wall: 1-14' x 16' electric overhead drive-in door1-14' x 16' electric overhead drive-in doorSouth Wall:3-16' x 20' electric overhead drive-in doors1-16' x 14' electric overhead drive-in door

4 - Wright 5-ton overhead bridge cranes; 15' clearance under hook in outside bays; and 18'6" clearance under hook in center bay. 400' travel and a 46' span.

Gravel parking area which currently accommodates 50 cars.

No

Amerigas Gas Company - 6" high pressure main at 60 PSI; 1-1/2" and 2" lines to building, distributed by 1" line throughout manufacturing area for process use.

City

City

Dominion Power Company
Primary: 12,470 volts primary distribution line.Transformer: 1500 KVA pad mounted transformer. Secondary: Square D switchgear, 4,000 amp, 277/480 volt, 3 phase, 4 wire.Distribution: Approximately 200 linear feet of 400 amp, 3 phase, 3 wire, 277/480 volt bus duct.Approximately 700 linear feet of 1,600 amp, 3 phase, 4 wire, 277/480 volt bus duct.Approximately 375 linear feet of 800 amp, 3 phase, 4 wire, 277/480 volt bus duct.

Individual gas/oil fired unit heaters
15 - suspended "re-VerbarRay" gas-fired infrared space heaters.

No - Office only

Yes - 100% wet with 2 risers (1 - 8" and 1 - 4") which produce .44 gpm over 3000 sf at 40.95 psi

Center ridge vents toward south portion of the plant. 6 wall mounted louvered centrifugal exhaust fans - 2 on the east wall and 5 on the west wall.

50 H.P. Quincy air compressor with Arrow air dryer. Airlines are distributed throughout the plant with drops every 25'.

* Public address system* Exterior security lighting* 850 square feet concrete block outside storage building

Approximately 45.06 acres of additional land adjacent to the south, east and west boundaries of the site could be made available at additional cost.

Modular homes
