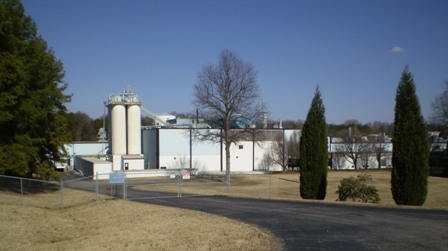

Sold Industrial Property (VA000939)

1961 / 1993
Originally constructed in 1961 with additions in 1980 and 1993

Good

17,480 SF
17,480 square feet of office space consisting of private offices, clear areas and conference room

626' x 360

Min: 19', Max: 19'

Bar joist construction

24' x 40'

8” to 12” steel H

Steel H

There are a combination of modified bitumen membrane and ballasted EPDM membrane roof systems over 22 gauge metal deck

6" Reinforced Concrete

8” painted block to 12.5’ with painted aluminum siding above

Metal halide and fluorescent lighting

West Wall
2 – 8’ x 8’ dock high doors with load levelers and a truck apron

East Wall
3 – 12’ x 13’9” covered overhead roll up dock high doors with load levelers and a truck apron

North Wall
1 – 12’ x 12’ ramped roll up drive-in door

3 – 1 ton monorail Coffing/Twin City cranes with 96’ travel, 13’ underhook height
1 – 2 ton monorail Coffing/Twin City crane with 96’ travel, 13’ underhook height
1 – 5 ton Cleveland overhead bridge crane with 18’ span, 30’ travel, 13’ underhook height
1 – 2 ton monorail Wright crane with 90’ travel, 13’ underhook height
1 – 2 ton Chicago tramrail crane with 72’ span, 135’ travel, 14’ underhook height

300 paved, marked and lighted spaces

Yes - Norfolk Southern Railway with a spur to accommodate 3 rail cars inside the building

Danville, 6" main at 30 psi,2" line at 30 psi

City

City

American Electric Power
Primary: There is a grid loop system for the City of Danville with 4,160 kv dual feed
Transformer: American Electric Power Transformers
69/4.16 kV, 3 phase
5000/6250 kVA, 55 deg C rise
5600/7000 kVA, 65 deg C rise
Switchgear: Main
2 – 1200 amps, 4160 volts, 3 phase, 4 wire switchgear

Gas
Roof mounted gas fired air make-up units provide heat and ventilation throughout the plant.

No - The office and support areas are air conditioned by use of roof mounted gas fired combination HVAC units.

Yes - 100% wet system
There are 2 risers, static pressure is 130 psi and residual pressure is 90 psi with a flow rate of 1000 gpm. The sprinkler system is served by a 750 gpm electric pump and a 1000 gpm diesel fired pump.

Air lines are distributed throughout the plant. The plant is served by:
2 – 350 HP Sullair screw type air compressors, 1650 cfm installed in 1994
2 – 200 HP Sullair screw type air compressors, 1250 cfm installed in 1982
1 – 150 HP Sullair screw type air compressor, 763 cfm installed in 2009
3 – Sullair 1600 – 3400 cfm air dryers installed in 1998
1 – Sullair 1200 – 2380 cfm air dryer installed in 1997
1 – 1,000 gallon receiving tank

Process cooling from a 1985 Trane 66 ton central chiller with a 1979 Thermal Care/Mayer cooling tower
300,000 gallon water tank
6,440 square foot Holland Tower
2,120 square foot wastewater treatment building
Floor drains and sumps are located throughout the plant

Company Transformers
Substation A–1500/2000 kVA, 3 phase, 60 Hz, 4160/480Y/277v
Substation B–1000/1333 kVA, 3 phase, 60 Hz, 4160/480Y/277v
Substation C–1500 kVA, 3 phase, 160/480Y/277v
Substation D–750 kVA, 3 phase, 60 Hz, 4160/480v
Substation E–2000/2667 kVA, 3 phase, 60 Hz, 4160/480Y/277v
Substation F–2500/3333 kVA, 3 phase, 60 Hz, 4160/480Y/277v
Substation G–2000 kVA, 3 phase, 60 Hz, 4160/480Y/277v
Substations A–G
Each served by 1–600 amps, 480Y/277v, 3 phase, 4 wire switchgear
